Naphthalene

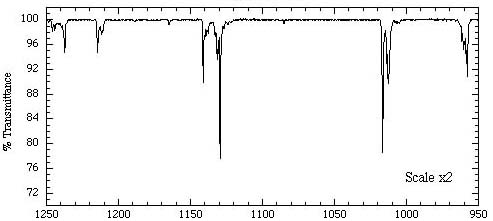

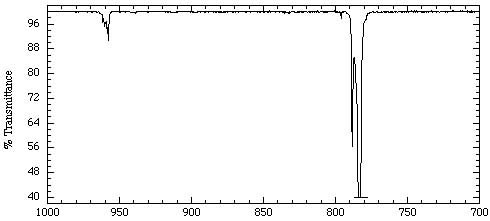

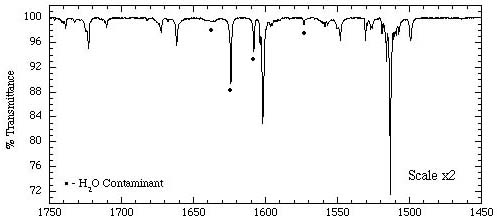

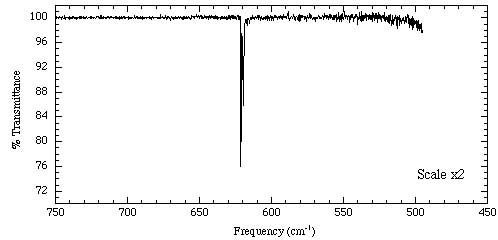

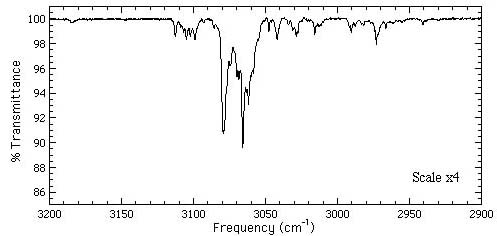

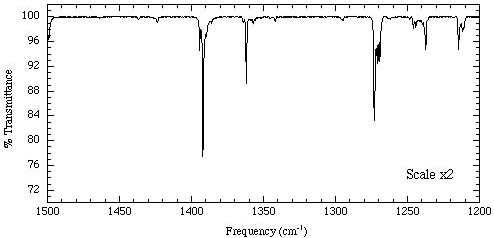

Anthracene Spectrum 2000-500cm-1

Click on the desired spectral region to zoom, or select below:

The above spectra are taken from:

Infrared Spectroscopy of Matrix-Isolated Polycyclic Aromatic Hydrocarbons 1. Neutral PAHs Containing 2 - 4 Rings, D.M. Hudgins and S.A. Sandford, J.Phys.Chem.A, 102, 329-343 (1998).
